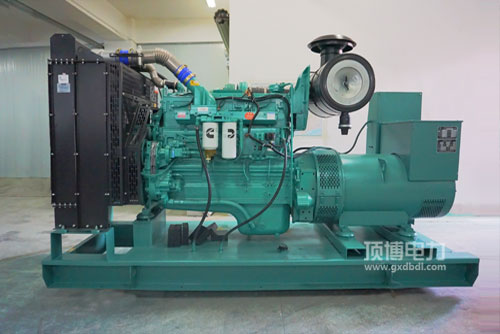

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯带发电用启思想柴油性能性好: 先进性的柴油管理系统性的，独特的STC、ESTC 划分管理系统性的，特殊性设汁的火塞上端燃燒室，低压喷洒柴油，积极做雾化，燃燒积极。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用打火机瞬态效果市场大的: 无极限的打火机整体布局制定，加上康明斯特别的EFC系统，保持精准程度高，崩溃时长快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用热车机升工作电压高: 一体化结构设计宽敞.外型布置准备合情合理，电脑运行保持稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷设备 QSNT. QSK19. QSK38. QSK50特殊要求中国人非城市道路最后关键期及亚洲Tier2. Tier 3进行排放法律规范特殊要求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零配件必须得要性好， 起行为进行及保障调养便捷性，成本价低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压空间 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L外貌长宽比 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净产品 Dry Weight   940kg

224-310KW康明斯电站用汽车发驱动力的特征 ：容积小， 缩小变高， 喷淋喷嘴空气当中热处理加热，易启动的，走动车载导航供电的优先选择。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

热车机款式	最常见最大功率(kW)Prime Power	应急电机功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
